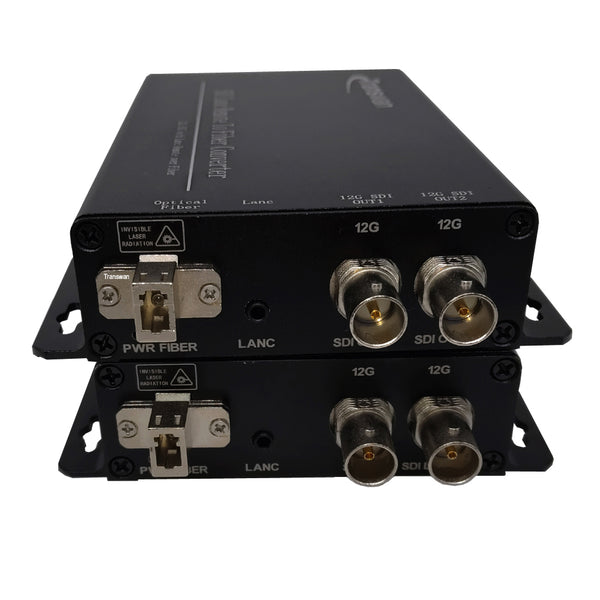

BY-SLANC-417 includes 1 x Transmiter & 1 x Receiver, It has 1 x Channel 12G-SDI Video & Lanc Remote Control Data to Fiber over 10Km Single-mode Fiber.
Lanc is launched by the Camera, each Camera Company have their own Protocol with a little difference, we already confirm BY-SLANC-417 can support the below Camera's Lanc
URSA Mini 4K (Blackmagic) & URSA 12K
Sony FX6
Sony FS700R, FS700, FS7
BAND RATE： 9600 bit/s
Lanc Connector: 2.5 mm
Specifications:
SDI input/output:
Signal format:SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI
Data rate:270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
Cable Equalization:
Automatic cable EQ (Belden 1694A cable)
75 m at 11.88 Gbps (4Kp60 UHD)
120 m at 5.94 Gbps (UHD)
200 m at 2.97 Gbps (FHD)
280 m at 1.485 Gbps (HD)
600 m at 270 Mbps (SD)
SDI interface:BNC 75 Ohm
Fiber interface: 1 x LC/PC
Number of transmitter channel:1
Transmitter wavelength:1310 nm
Transmitter output power:-6~-1dBm
Number of receiver output:1
Receiver sensitivity:-14.4dBm～-1dBm
General index:
Input power:DC 5 V or 12V
Power consumption:less 3W
Work Temp:-20°C to 70°C
Storage Temp:-40°C to 85°C
humidity:0 ~ 95% (non-condensing)
Case material:Aluminum
Optical
Fiber interface: 1 x LC/PC
Number of transmitter channel: 1Ch SDI video + 1 Ch Lanc Remote Control
Supported Fiber Type: Single-Mode Fiber
Transmitter wavelength:1310 nm
Transmitter output power:-6~-1dBm
Number of receiver output:1
Receiver sensitivity:-14.4dBm～-1dBm
General index:
Input power:DC 5 V or 12V
Power consumption:less 3W
Work Temp:-20°C to 70°C
Storage Temp:-40°C to 85°C
humidity:0 ~ 95% (non-condensing)
Case material:Aluminum
Enclosure Small Size: 63 x 52 x 22 mm
Net weight:210g /pair （with Power supply 440g/pair）
Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
Package:
1. 1 x transmitter with SFP module.
2. 1 x receiver with SFP module
3. 2 x Power Supply Adapters
4. 1 x Manual
Shipment:
Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.
