XLR Audio with Phantom Power Switcher to Fiber
Features:
- Multi-Channels Line-Level Balanced Audio fiber optic extender with XLR ports (female to male) 20 Km on SMF or 500 meters on MMF
- If the Audio Source is Condenser Microphone which need 48V Phantom Power Supply, BY-XLR-329 can provide by pushing the switcher light button to "ON", so It can directly conect with Condenser Microphone.
- If the Audio is from other Types Microphone (Not Condenser Microphone), the user need other devices like DJ controller/ Audio Mixer which has Amprifier function to work with our Extender under the button light is "OFF"
- Supports 16-bit digitally encoded broadcast quality balanced audio;Easy stand-alone or rack-mount installation.
- Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required
- LED indicators are provided to instantly monitor the system operating status

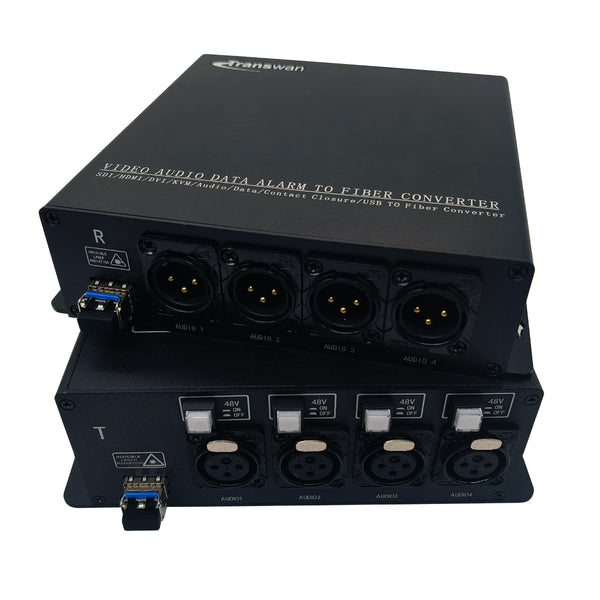

BY-XLR-329 includes optical transmitter and receiver, it enables 4 Channels balanced audio over optical fiber for extreme long distance, it has 4 x Switchable 48V Phantom Power Supplies.
Work Mode A: Directly Connect with Condenser Microphone by providing 48V Phantom Power when the swither Light is "ON" by pushing the button
Work Mode B: If Audio Source is not from Condenser Microphone, the Switcher light much be "OFF". and the Audio Mixer or DJ Controller is needed before Audio Source
