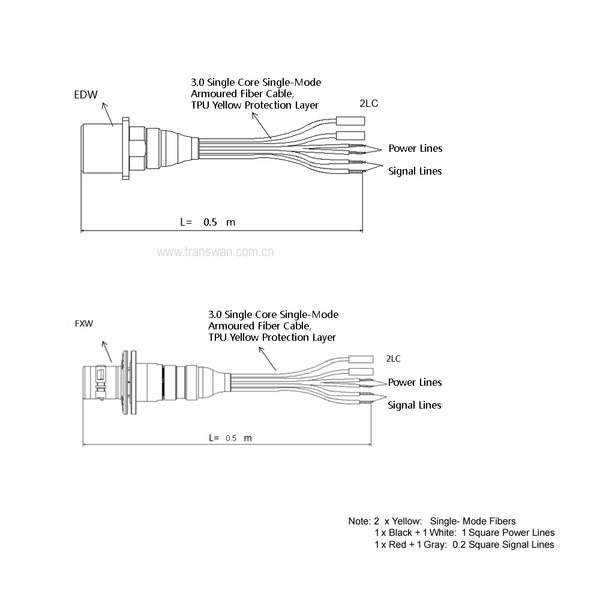

SMPTE311M 3K93C Connector FXW & EDW with Tails of 2 x Fiber Connector +4 x Lines

Transwan

Regular price $215.00

Set

Features:

  • Push-pull self-latching system for quick and easy mating.
  • Compact design with 2 fibres, 2 power contacts and 2 signal contacts.
  • Easy cleaning of the fibre optic contact ferrules.
  • Very low optical losses (<0.10dB).
  • Reliable design, sealed to IP68.
  • Optional pre-terminated F2 fiber ferrule, quick and easy on-site installation.
  • Comply with SMPTE 304M and 311M/ARIB/EBU
    standards

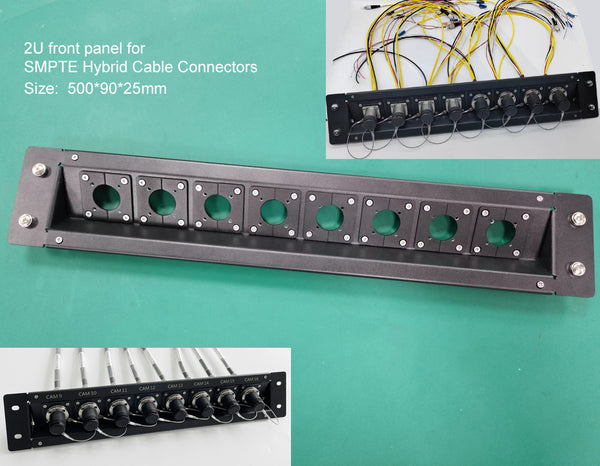

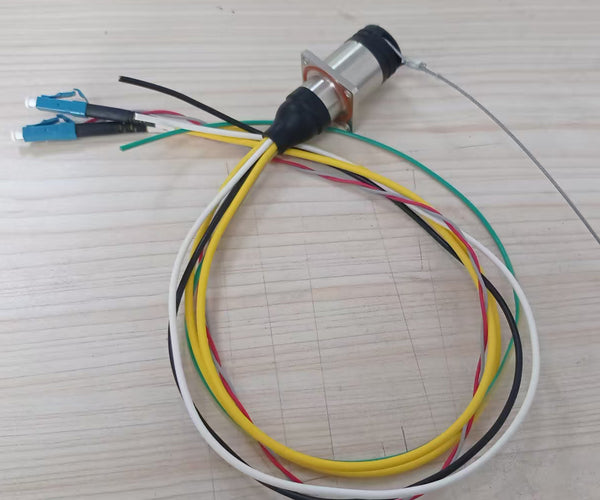

Panel sockets (EDW) with tails for panel builds
The EDW.3K SMPTE socket is used as a standard on many HD hybrid fibre
cameras. The same connector is used in patch panels and other channel connections from the camera end, and is used on other equipment that is designed to connect to SMPTE hybrid fibre links. The connector can be provided with either bare tails for direct connection to the cable with fibre splicing, or with connectors terminated for connection inside a splice junction box or similar.

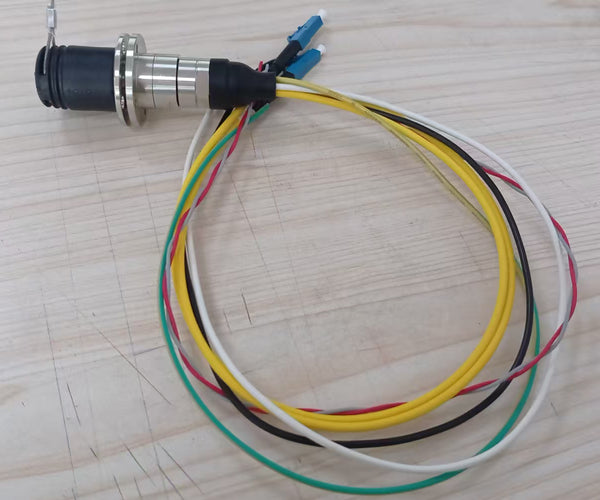

Panel plugs (FXW) with tails for panel builds
The FXW.3K SMPTE panel-mounted plug is used as a standard on many HD
hybrid fibre camera CCU’s. The same connector is used in patch panels and other channel connections from the CCU end, or and is used on other equipment that is designed to take advantage of SMPTE hybrid fibre links. The connector can be provided with either bare tails for direct connection to the cable with fibre splicing or with connectors terminated for connection inside a splice junction box or similar.

Specifications:
Optical Cable Component Parameters:
Inserting and Pulling Times: 20000 Times
Material: Shell is Stainless Steel
Protection Level: IP67
Salt Spray Performance: 48H
Working Temperature: -40℃~+85℃
Insection Loss: ≦0.75dB
Cable Assembly Retention: 500N

Fiber Mode: Single Mode
Attenuation(After Cabling): ≤0.4dB/km@1310nm
Power & Signal Connectors: Universal terminal Lead (2.54 or 3.96) provided

Application:

For Camera Fiber Optical Transports in HDTV broadcasting,outdoor live broadcast,sports live,studio,concert……

About shipment:
Once order received, we will worldwide deliver within 1 week by DHL for 1 week arrival.

Shopping at our Ebay store

BY-3K93C-FXWEDW-( LC, FC, ST, SC)

BY-3K93C-FXW-(LC, FC, ST, SC)

BY-3K93C-EDW-(LC, FC, ST, SC)
