Features:
- With Mini Size; Only Functional PCB boards for choice to integrate the comprehensive systems
- No need Driver, plug and Play;
- LED Status Indicator. "SD" "HD" Sync Signal Auto Sense and LED shows out individually.
- with Hot Pluggable SFP transceiver

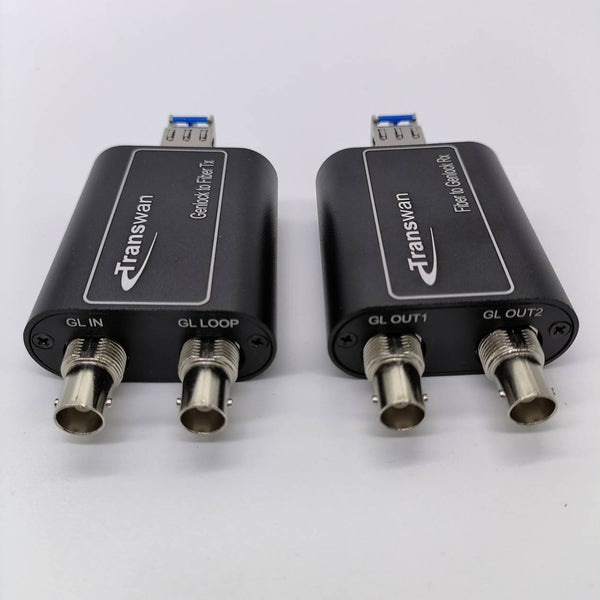

Genlock over Optic Fiber Extender includes 1 x Transmitter and 1 x Receiver. its Mini Size 38 x 93 mm. It transmite the Genlock signal over Optic Fiber Cable to Long distance of 20 Kilometers, the Operator can use a blackburst or tri-level central timing reference signal to synchronize the video output for the production systems in the remote location. This ensures that the live streaming event has seamless audio and video for the highest viewing experience possible.
Specs
Analog Video / GL
Number of Channel: 1 Ch, Tx with 1 x Loopout, Rx with one more output
connector: BNC

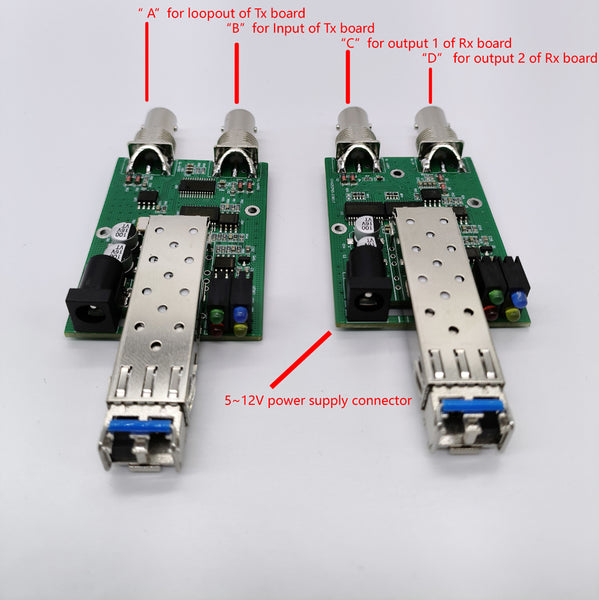

Connector Defination (the second image): "B" for input of Tx board，"A" for loopout of Tx board， "D" for output2 of Rx board, "C" for output 1 of Rx board
Standard: PAL, SECAM, NTSC, Tri-level ( Bi / Tri level auto sense )
a) input=bi-level, output=bi-level
b) input=tri-level, output=tri-level
Impedance: 75 Ω
Bandwidth: > 5.8 MHz at +/- 0.2dB
Differential Gain/ Phase: < 1%
Group delay: < 10 ns
SNR: > 67 dB (CCIR567)
Optical:
Wavelength: 1310nm1310nm (default), CWDM wavelength Optional
Connector: 1 x LC
Datarate: 1000 Base
Output Power: -10~-3db
Rx Sensi:<-24db
Support Fiber Type: 9/125u single-mode
Estimated Distance: 0~20 Kilometers

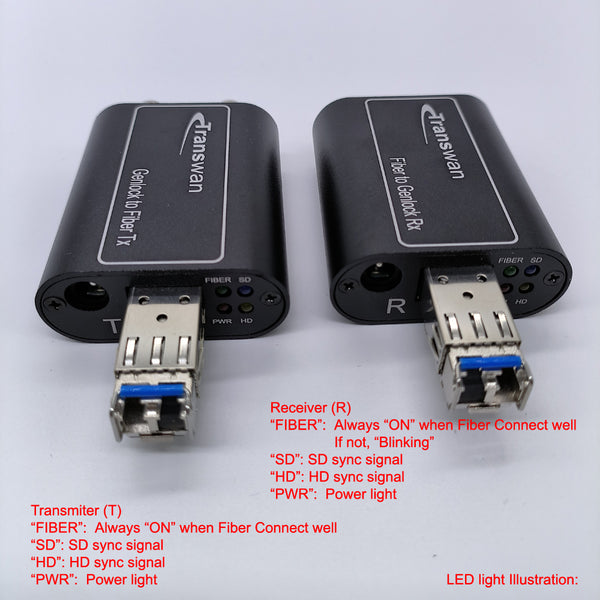

LED Illustration: please check the third Image and below:
Power Supply:
Voltage range: DC 5~12V
Connector: Universal supply connector
Physical:

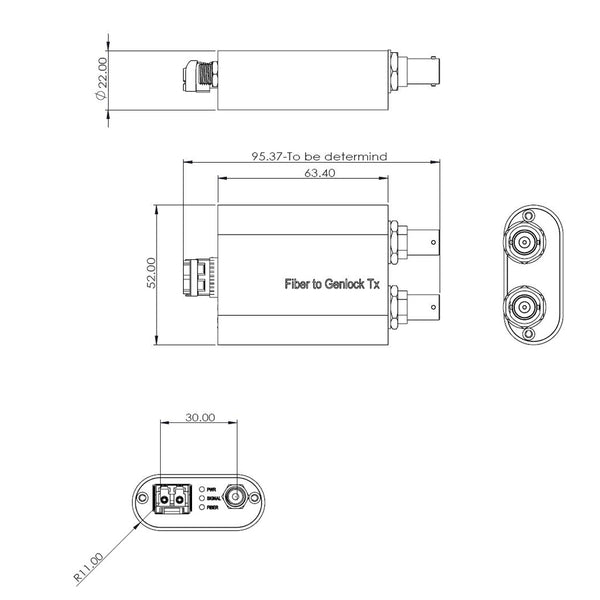

Enclosure Size: 95.37 x 52 x 22 mm
PCB board Size: 38 x 93 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg/pair
Environment:
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)
Package:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 2 x Power Adapters.
4. 1 x Manual.
