Features:
- Connectors with Individual Numbers for easy identification
- Armord cables with Excellent crush resistance to withstand crowd and vehicle traffic for stadium and arena venues; LSZH Jacket, Outdoor, field proven cables are easily deployed and retrieved for remote news gatherings and sporting events
- 8 to 12 Single-mode fibers, higher fiber counts are available on request; Different Composed Fiber Connectors are available.
- Distribution Broadcast fiber optic cables are immune to electro-magnetic and radio frequency interference
Instruction:
Breakout fiber cables are most commonly used in the consolidation of numerous individual fiber patch cables in order to eliminate network clutter. Armored Breakout Cables feature a specialized jacketing that increases the durability of fiber cables
Specs:
Connector Type： ST, FC, SC, LC, different Composed Connectors are available.
Fiber Mode： OS2 9/125μm Singlemode
Fiber Grade: G.657.A1
Fiber Strands:： 8 or 12 Fibers
Jacket Material: LSZH
Fiber Diameter: 6.0mm
Connectors' Breakout Length: 100.00 MM
Minimal Bending radius: >30D
Tensile Load: 1200/800N (Short/Long Term)
Compression resistant strength: ≥3000N/100MM
Insertion Loss: ≤0.1dB
Return Loss:≥52dB
Jacket Type: Indoor/Outdoor
Operating Temperature: -40 to 85°C
Storage Temperature: -40 to 85°C

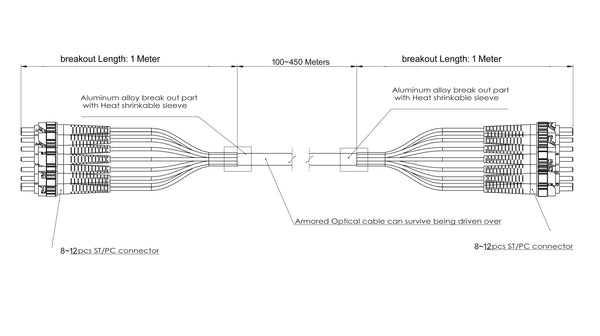

Fiber Cords Structure: Outer Jacket + Aramid Yarn + Steel Tube + Fiber
Optical Branching Device (Aluminium alloy)
We provide the customized Cables with the different Fiber Strands, Fiber Types, Connector Types & Cable length etc..............so if you can not find what you need, please feel freel to contact us at sales@transwan.com.cn or transwan.com.cn@gmail.com, we will offer and ship the goods as fast as the listed
